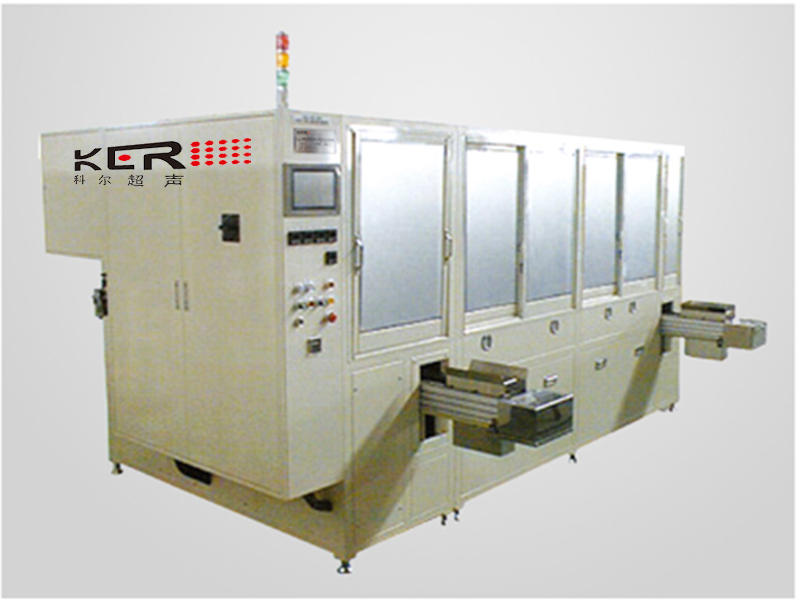

全自動超聲波清洗機在實際應用過程中，常面臨清洗效果、超聲波系統以及液體管理系統等多方面問題，這些問題不僅影響清洗效率與質量，還可能導致設備故障，以下是對常見問題的詳細分析及對應的解決方案。

In practical applications, fully automatic ultrasonic cleaning machines often face various problems such as cleaning effectiveness, ultrasonic systems, and liquid management systems. These problems not only affect cleaning efficiency and quality, but may also lead to equipment failures. The following is a detailed analysis of common problems and corresponding solutions.

在清洗效果問題上，清洗不徹底是較為突出的情況。其原因主要涉及超聲波頻率、清洗劑濃度和溫度控制三個方面。不同的清洗對象對應著不同的超聲波頻率，若使用的 28kHz、40kHz、80kHz 等頻率與應用場景不匹配，就無法達到理想的清洗效果；當清洗劑濃度低于推薦值 15% 時，難以充分溶解和去除污垢；而溫度控制偏差若超出工藝要求的 ±5℃范圍，也會影響清洗的化學反應和超聲波的空化效應。針對工件表面損傷問題，可采取一系列預防措施，對于脆性材料，改用≥80kHz 的高頻清洗方式，能夠在保證清洗效果的同時減少對工件的損傷；增加緩沖支架可有效減少清洗過程中工件的相互碰撞；對于精密件，將清洗時間嚴格控制在 3 分鐘以內，避免過度清洗造成損壞。

In terms of cleaning effectiveness, incomplete cleaning is a prominent issue. The main reasons involve three aspects: ultrasonic frequency, cleaning agent concentration, and temperature control. Different cleaning objects correspond to different ultrasonic frequencies. If the frequencies used, such as 28kHz, 40kHz, 80kHz, etc., do not match the application scenario, the ideal cleaning effect cannot be achieved; When the concentration of the cleaning agent is lower than the recommended value of 15%, it is difficult to fully dissolve and remove dirt; If the temperature control deviation exceeds the ± 5 ℃ range required by the process, it will also affect the chemical reaction of cleaning and the cavitation effect of ultrasonic waves. A series of preventive measures can be taken to address the issue of surface damage to workpieces. For brittle materials, high-frequency cleaning methods with a frequency of ≥ 80kHz can be used to reduce damage to the workpiece while ensuring cleaning effectiveness; Adding buffer brackets can effectively reduce collisions between workpieces during the cleaning process; For precision parts, strictly control the cleaning time within 3 minutes to avoid damage caused by excessive cleaning.

超聲波系統故障主要體現在換能器效率下降和發生器報警兩方面。在換能器效率下降的診斷中，阻抗測試、絕緣電阻檢測和振幅檢測是重要手段。當阻抗測試結果與正常值 50±5Ω 的偏差超過 10% 時，意味著換能器性能出現問題，需要進行更換；若絕緣電阻低于 10MΩ，應立即停用設備，防止發生安全事故；當振幅檢測值小于 25μm 時，則需對驅動電路進行檢查和修復。發生器報警時，不同的代碼對應著不同的故障原因及處理方式。出現 E01 過流保護代碼時，需仔細檢查換能器電纜是否存在短路情況；E02 過熱保護代碼提示應及時清理散熱風機的積塵，保證良好的散熱效果；當出現 E03 頻率失鎖代碼時，需重新匹配諧振電容，以恢復設備正常工作頻率。

Ultrasonic system failures mainly manifest in two aspects: decreased transducer efficiency and generator alarms. Impedance testing, insulation resistance testing, and amplitude testing are important methods for diagnosing the decrease in transducer efficiency. When the deviation between the impedance test result and the normal value of 50 ± 5 Ω exceeds 10%, it means that there is a problem with the performance of the transducer and it needs to be replaced; If the insulation resistance is lower than 10M Ω, the equipment should be immediately stopped to prevent safety accidents; When the amplitude detection value is less than 25 μ m, the driving circuit needs to be inspected and repaired. When the generator alarms, different codes correspond to different fault causes and handling methods. When the E01 overcurrent protection code appears, it is necessary to carefully check whether there is a short circuit in the transducer cable; E02 overheat protection code prompt: Clean the dust accumulation of the cooling fan in a timely manner to ensure good heat dissipation effect; When the E03 frequency loss lock code occurs, it is necessary to re match the resonant capacitor to restore the normal operating frequency of the equipment.

液體管理系統的常見問題包括泡沫溢出和過濾系統堵塞。對于泡沫溢出問題，可通過多種方式進行控制，按 0.1%-0.3% 的比例添加消泡劑，能夠有效抑制泡沫產生；安裝液位傳感器并與補液系統聯動，可根據液位變化自動調節液體補充量，避免因液位過高導致泡沫溢出；將噴淋壓力優化至 0.2-0.5MPa 的合理范圍，也有助于減少泡沫生成。在過濾系統堵塞的維護方面，初級過濾需每天清理目數≥200 的濾網，及時去除大顆粒雜質；每月更換精度為 5μm 的精密濾芯，確保過濾效果；同時，每周進行浮油排放，做好油水分離工作，以維持液體管理系統的正常運行，保障清洗機的工作效率和清洗質量。

Common problems with liquid management systems include foam spillage and clogged filtration systems. Foam overflow can be controlled by various ways. Adding defoamer at the proportion of 0.1% -0.3% can effectively inhibit the production of foam; The liquid level sensor is installed and linked with the liquid replenishing system. The liquid replenishing amount can be automatically adjusted according to the liquid level change to avoid foam overflow due to high liquid level; Optimizing the spray pressure to a reasonable range of 0.2-0.5MPa also helps to reduce the generation of foam. In terms of maintenance for clogged filtration systems, primary filtration requires daily cleaning of filter screens with a mesh size of ≥ 200 to promptly remove large particle impurities; Replace the precision filter element with a precision of 5 μ m every month to ensure the filtration effect; At the same time, perform weekly floating oil discharge and ensure proper oil-water separation to maintain the normal operation of the liquid management system and guarantee the efficiency and quality of the cleaning machine.
